Display and Control of the ATX Series

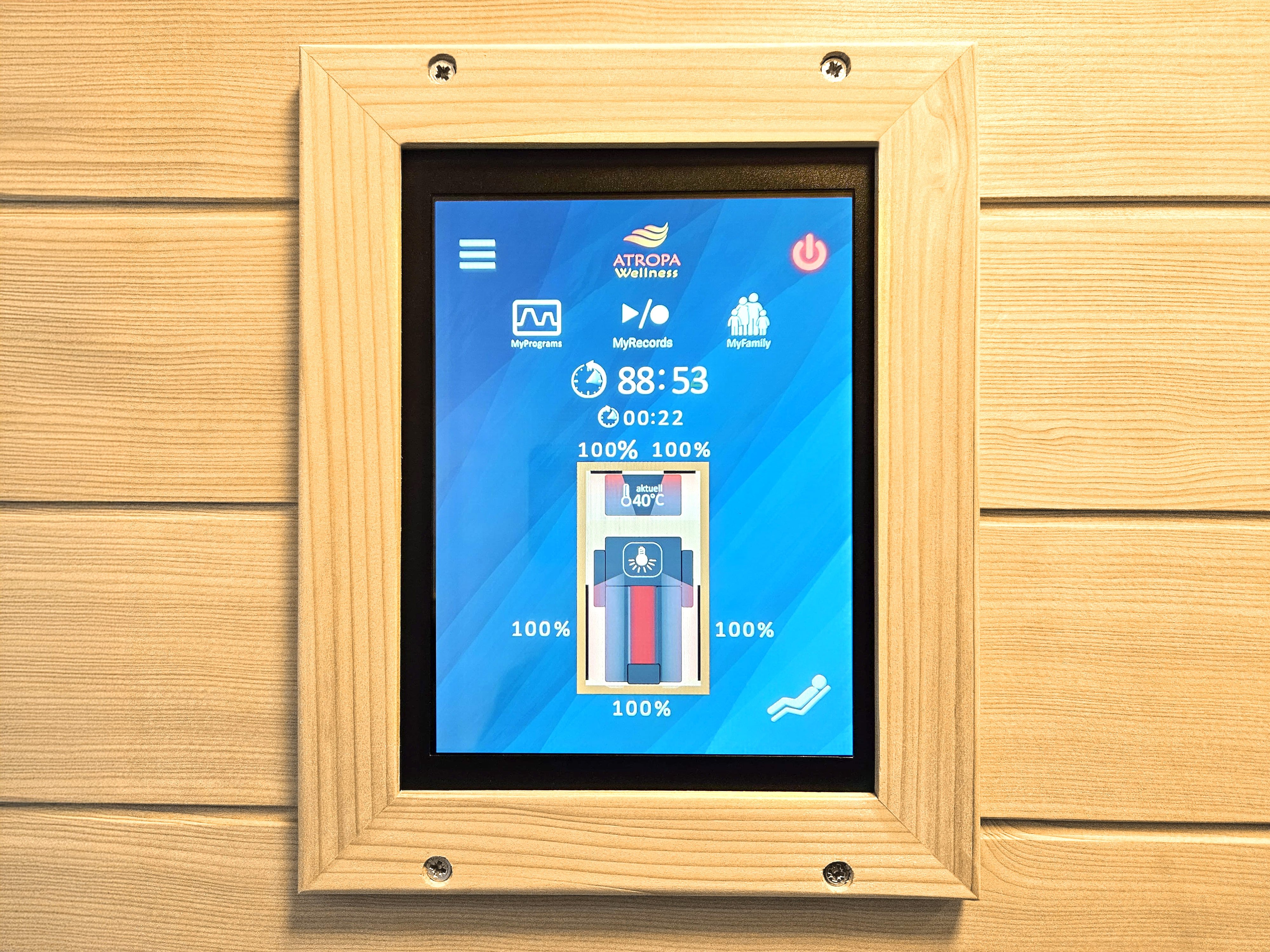

The operation of the ATX series is done via a state-of-the-art 7.7-inch tablet. The sensitive touch display now allows for many more settings than any Infrared Sauna on the market before. Nevertheless, we have tried to keep the operation as simple and intuitive as possible.
The respective model is shown on the display. You can easily change the intensities by tapping on the desired infrared heater and then adjusting its strength with a slider.
Of course, as before, you can also limit the maximum temperature and adjust and dim the lights and color lights.
The automatic programs have been expanded and the MyFamily® function from the ATR series has also found its way back into the ATX series. We have now implemented a new function in the ATX series that was often requested by customers: the MyRecords® recording and playback function now lets you create your own program and simply play it back on your next use.

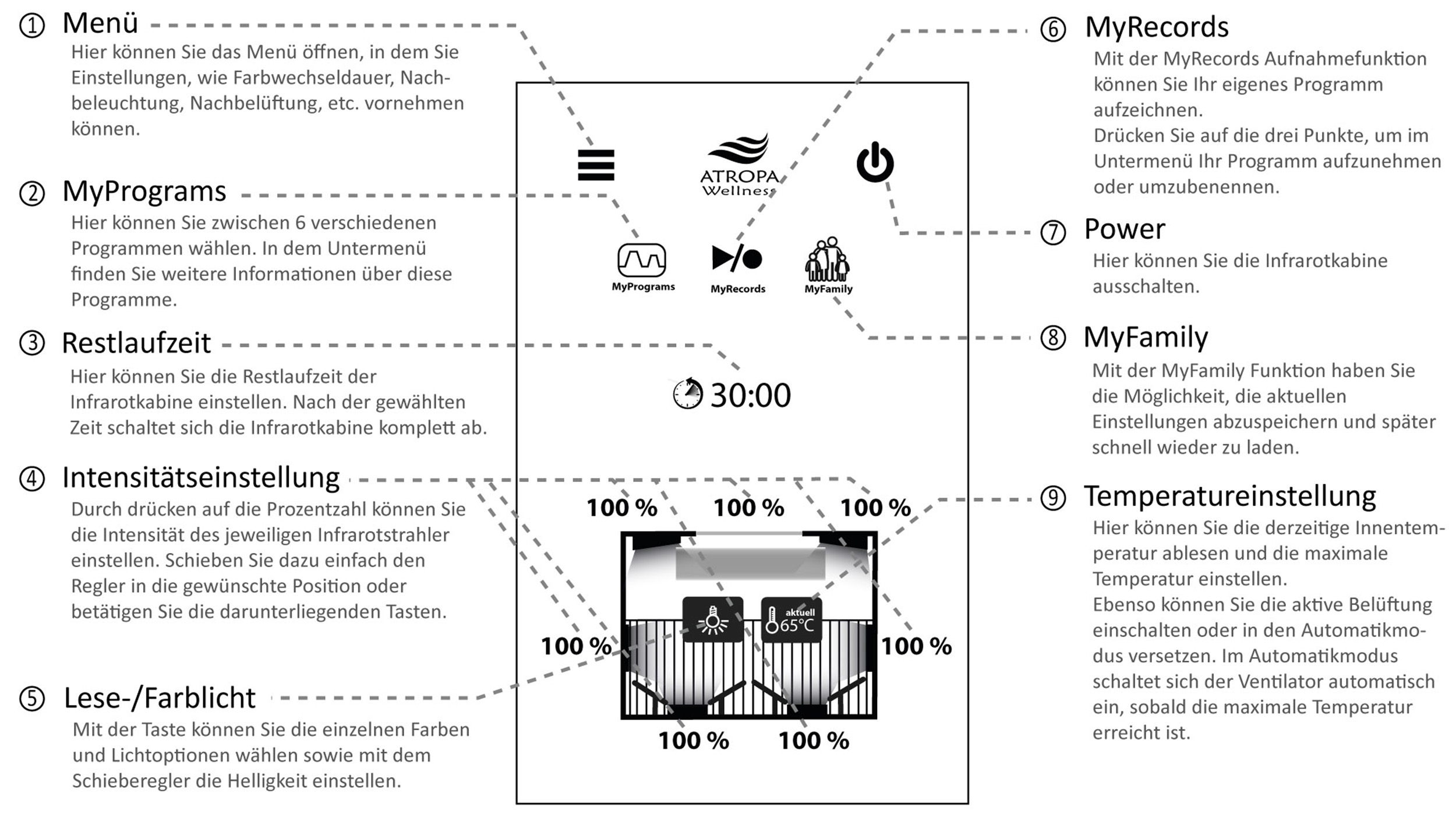

Function Overview
Control of the ATX Series for one person
Control of the ATX Series for two people
The control of the Infrared Sauna is done via the tablet from the inside. The following settings are possible:
Intensity Control
- Settings possible in 1% increments from 0 to 100%. Either via a slider or in 1% and 10% steps.
- The intensity of each deep heat heater is separately adjustable.
- 6 automatic programs, which automatically regulate the time and intensity.
- MyRecords® recording and playback function: You can create your own automatic program here.
- MyFamily® memory function, with which you can save and quickly reload your settings.
Time Setting
- easy operation via a slider on the tablet
- adjustable from 1 to 90 minutes, changeable at any time
- recommended application time: 20 min to 45 min
Temperature Setting
- easy operation by pressing the temperature symbol and using a slider
- proven thermostat circuit
- adjustable from 25°C to 65°C
- recommended cabin temperature: 35°C to 55°C
- active ventilation to keep the room temperature lower if desired, adjustable in either manual or automatic mode.
- active post-ventilation adjustable: the ventilation turns on in this mode for 10 minutes after the Infrared Sauna is switched off to better ventilate the room.
Light Settings
- strong, dimmable reading light, modern LED technology
- dimmable color light therapy with 12 colors, single and alternating mode; LED panel
- dimmable color light strip on the roof and under the seat with 12 colors, single and alternating mode
Automatic Programs
The innovative control unit of the ATX series, in addition to manual selection of temperature, duration, and intensity, also features the automatic program function MyPrograms®. This independently controls the parameters, taking into account the latest physiological findings, so that the user can simply relax and lean back.
The Programs
Therapy Program
- intensive infrared radiation
- for use with physiological complaints
- optimal for pain relief

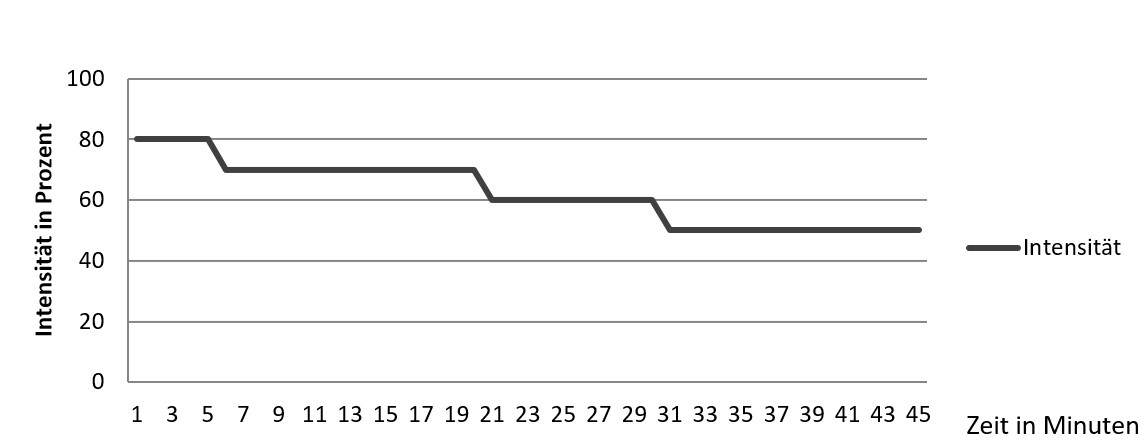

Detox
- helps the body to detoxify naturally
- supports metabolism
Refresh / Revitalize
- gives new energy to the psyche and physique
- stimulates circulation
Gentle Infrared Radiation
- relax after a hard day
- before and after physical activity
- recovery for body and mind

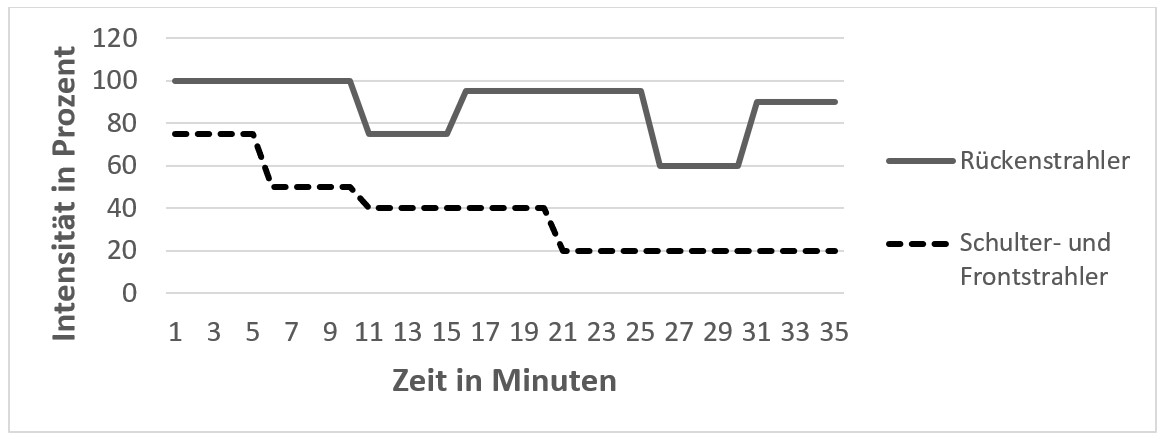

Back
- concentration of the deep effect on the back
- gentle radiation from the other heaters
- ideal for back problems
Contrast Bath
- stimulation of blood circulation
- creation of an inner balance
- relaxation of the whole body
MyFamily® Memory Function
With the MyFamily® memory function, you can easily save your favorite settings and reload them for your next session.
This allows you to implement your wishes even faster.
Application
Four memory slots are available.
The following values are saved with the MyFamily® function:
- Intensity of the infrared heaters
- Color or reading light settings
- remaining application time
- desired maximum temperature
Advantages
- quicker access to your settings
- no unnecessary, repeated trial and error for the right setting
- optimal for multiple users
MyRecords® Recording Function
With the MyRecords recording function, you have the opportunity to create your own individual program. All settings such as the intensity of the individual heaters, light settings, and temperature are saved. For your next session, you can simply load this program via the tablet.
Application
Four memory slots are available.
The following values are saved with the MyRecords function:
- Intensity of the infrared heaters
- Color or reading light settings
- desired maximum temperature
Advantages
- customizability of programs
- quicker access
- optimal for multiple users
Solid Control System
Before market launch, all control elements undergo extensive quality tests to ensure their durability. The circuits are subjected to a thorough inspection to meet the high demands of use in Infrared Saunas. Special attention is paid to precise dimensioning in terms of energy consumption and heat resistance.
In addition, clean wiring and the thermally optimal arrangement of the elements are ensured.
Should a problem ever occur, all elements can be easily replaced to ensure the functionality of the Infrared Sauna.
